BC | B22 Bottle Lamp Kit with In Line switch and Rubber Bung Kit21

£13.99 - £23.85
SKU:
KIT21
Shipping:
From £4.69 - Free over £75
Bulk Pricing:
Buy in bulk and save
Adding to cart… The item has been added

Delivery Options


  • Tracked 24 - £6.99 Within 1-2 working days

  • Tracked 48 - £4.69 Within 3-4 working days

  • DHL - £8.99 Within 1-2 working days

BC | B22 Bottle Lamp Kit with In Line switch and Rubber Bung Kit21

This Bottle kit is perfect for turning any bottle into a stunning table lamp.
Simply choose the lampholder colour, cable colour and bung size to create your very own bottle lamp kit.

This kit will require you to drill a 10mm hole in the bottle to allow the pre made cable cord set to be pushed through and out the top of the bottle.

The lampholder, bung and bung cover are all made in the UK and are made from solid brass.

All components have CE certification and conformity certificates.

Kit contains the following items:

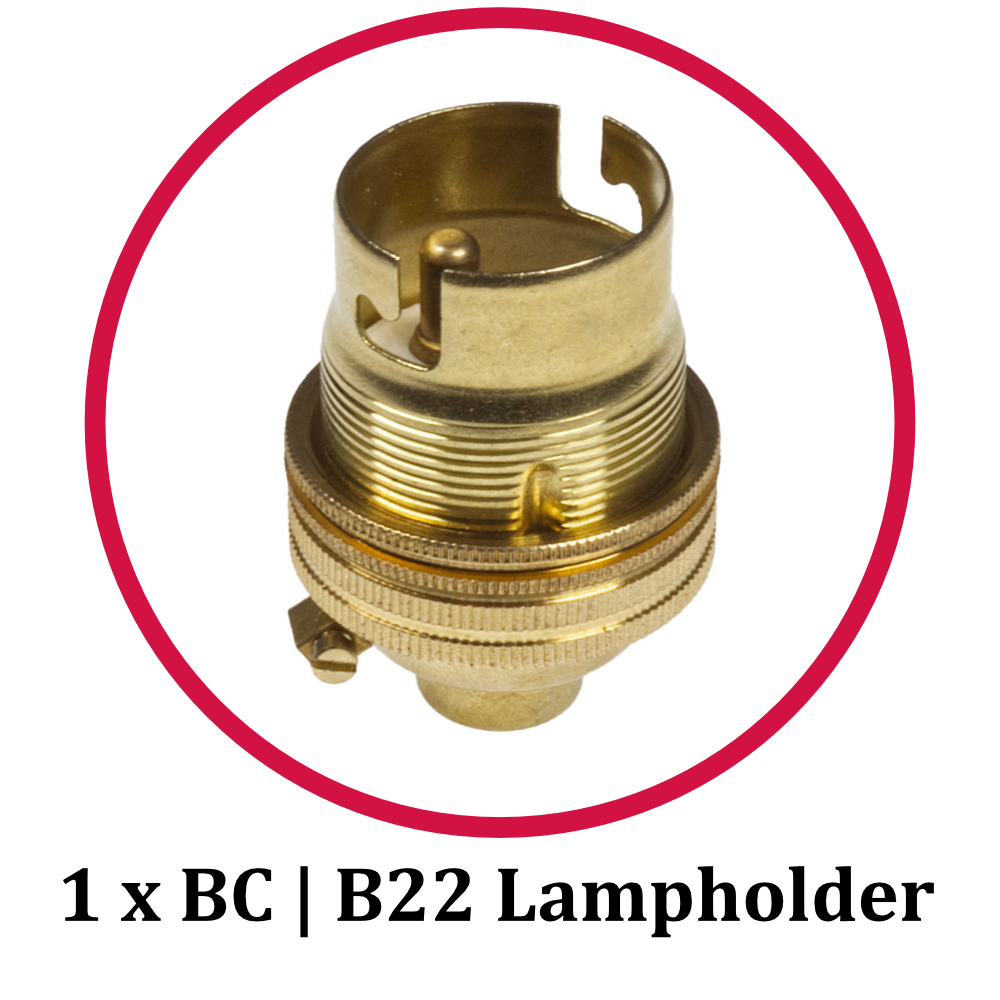

  • 1 x BC | B22 | Bayonet Cap Lampholder

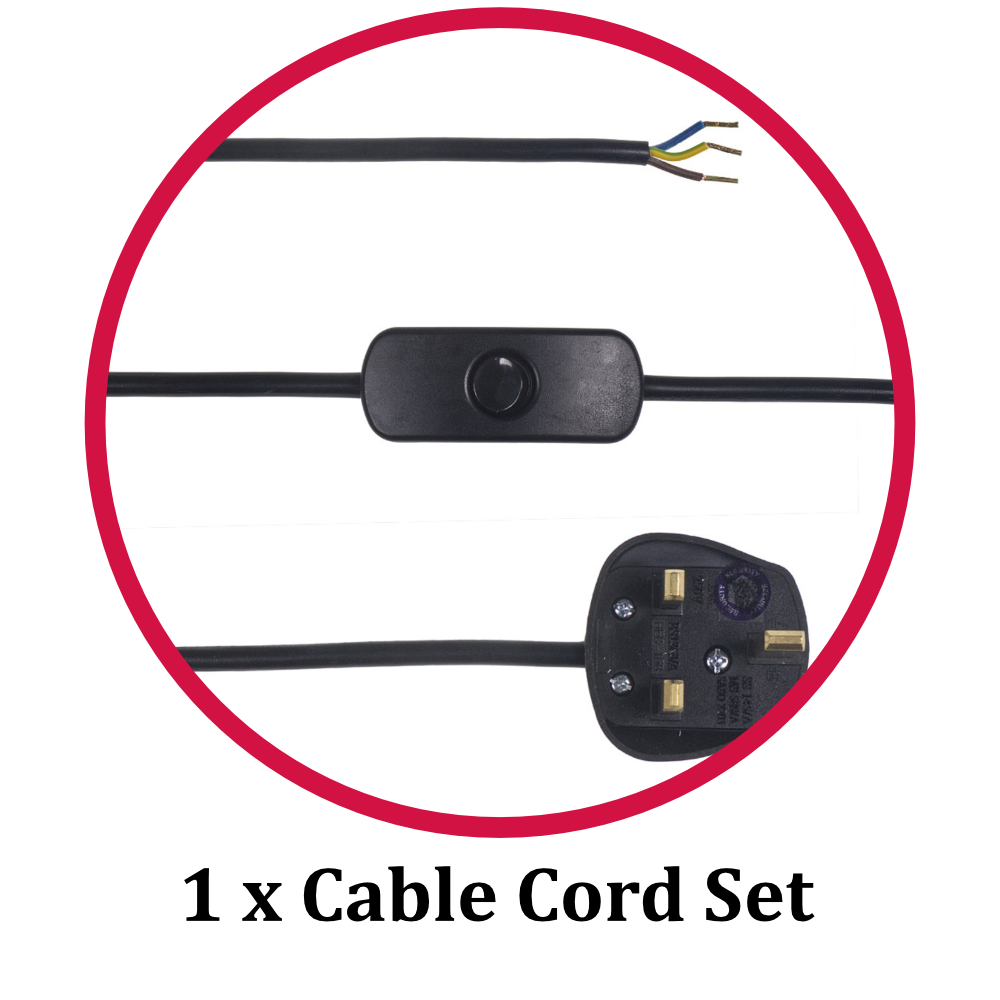

  • 1 x Cable Cord Set

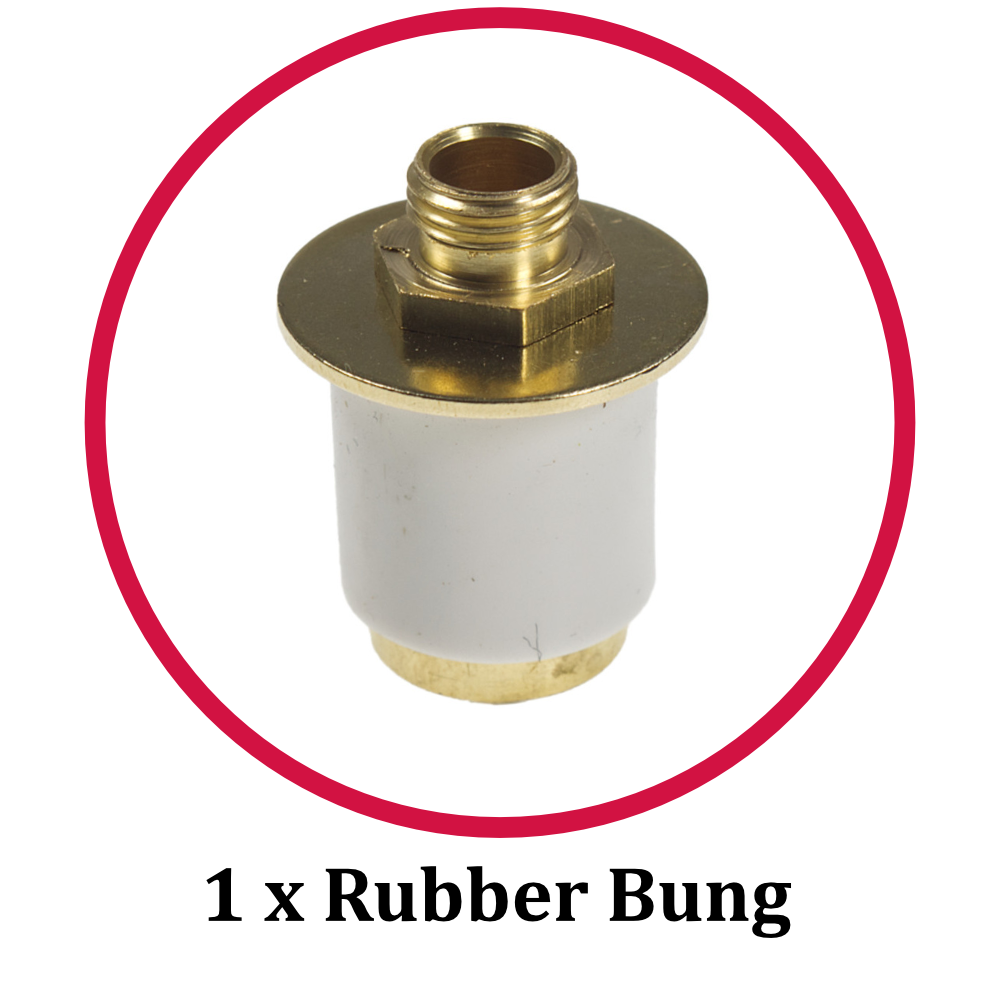

  • 1 x Bung

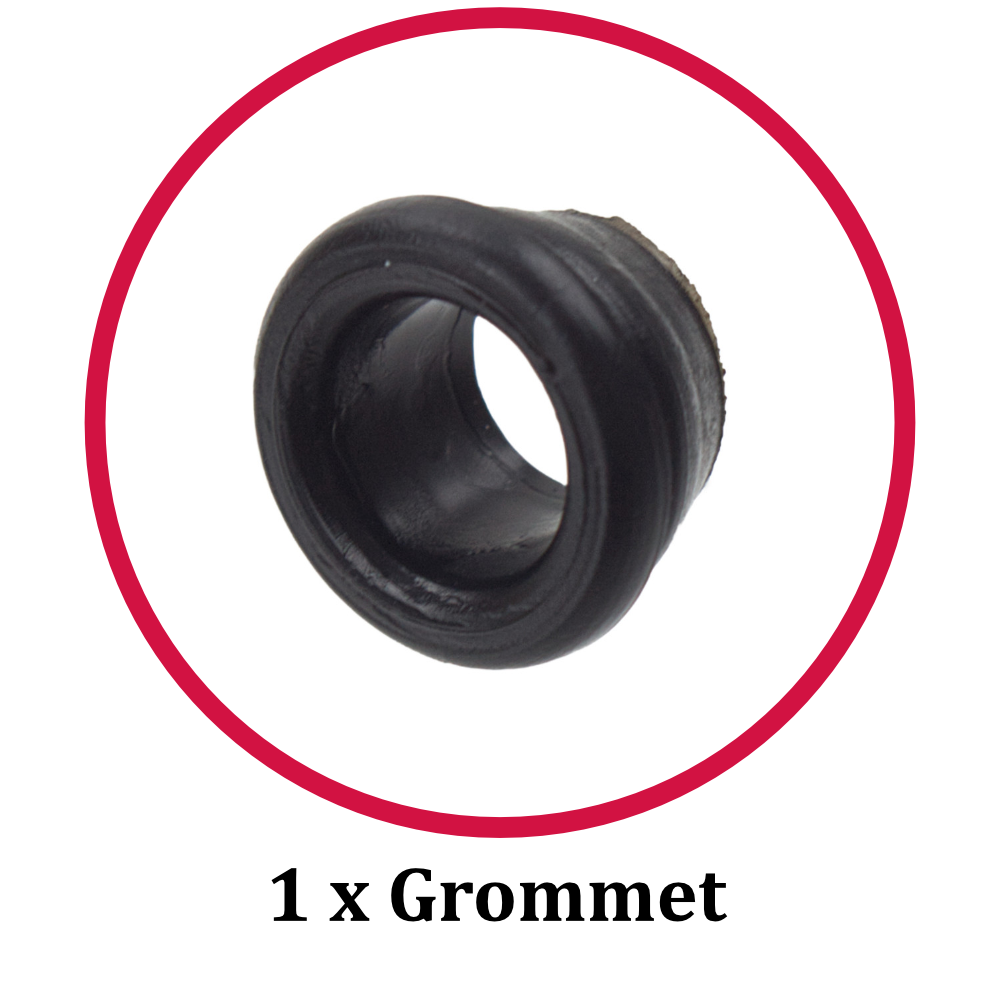

  • 1 x Cable Grommet
  • 1 x Cable Cord grip

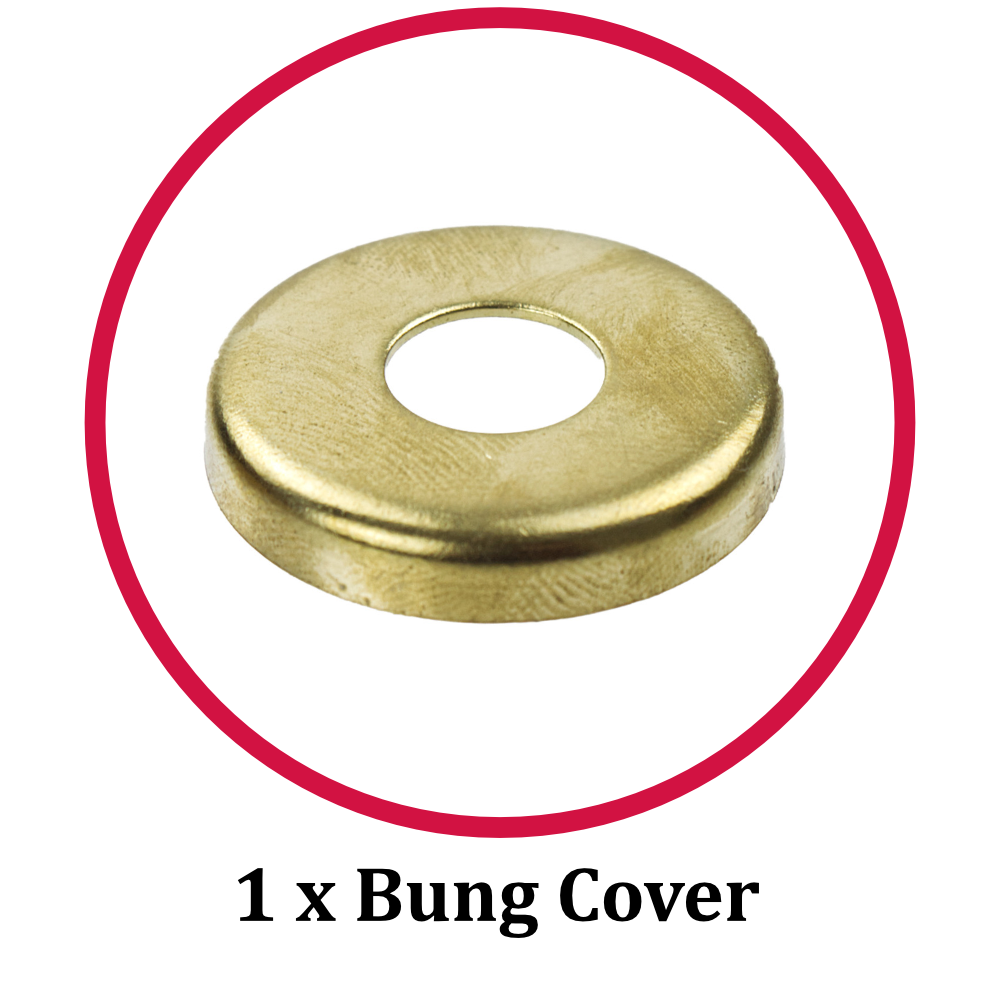

  • 1 x Bung Cover

If you need help / guidance in installing this kit then visit our help centre and search for "Kit 21" or click on the following link for a step-by-step guide on how to install this kit: 'Kit 21 Installation Guide'
In addition, if you need guidance in measuring the bottle in order to pick the correct bung size then see the following article from our help centre: 'Measuring Bottle Hole For Bung Size'

Please Note: This kit does NOT include any glass bottle or lamps.
The supplied Bung cover will not fit the 25-29mm Bung option.

Spec:

  • Lampholder: BC | B22 | Bayonet Cap
  • Shade Facility: Yes (Shade not included)
  • Max Wattage: 60w (Lamp Not Included)
  • Lampholder Height: 45mm
  • Lampholder Diameter: 32mm
  • Min Shade Hole Size: 26mm
  • Max Shade Hole Size: 32mm
  • Cable Length Total: 2.5m
  • Cable Length from un wired end to switch: 800mm
  • Cable Outer Diameter: 7mm approx.
  • Cable CSA: 0.75mm
  • Switch: Single Pole


PLEASE NOTE: If selecting the gold cable colour option - the gold cable now has a white plug instead of the gold one shown in the images. This is due to a temporary change in supplier, see below for the new gold 3 core cable with a white plug.
Gold 3 Core Cable with White Plug

Base Type:
Bottle
;25-29mm Bung:
Please Note: Nut cover Will Not Fit This Bung.
