BC Lampholder And Side Entry Bottle Kit

BC Lampholder And Side Entry Bottle Kit

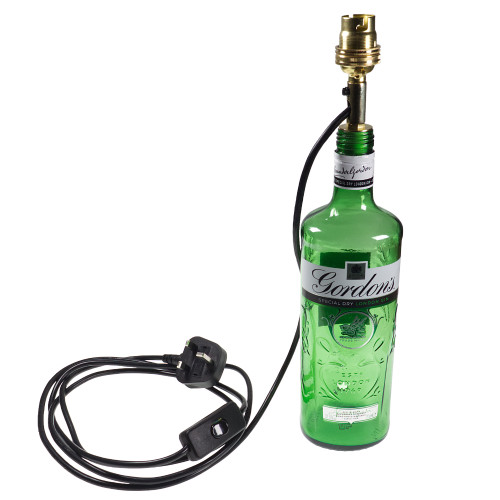

This bottle kit is perfect for turning any bottle into a light fitting without the need of drilling the glass.
The cable will come out the top of the bottle between the bottle and lampholder.

Simply choose your lampholder colour, cable colour and bung size, if you need help working out what bung size is required then please head over to our help centre where this guide will help you: Measuring bottle hole for bung size

Kit contains the following items:

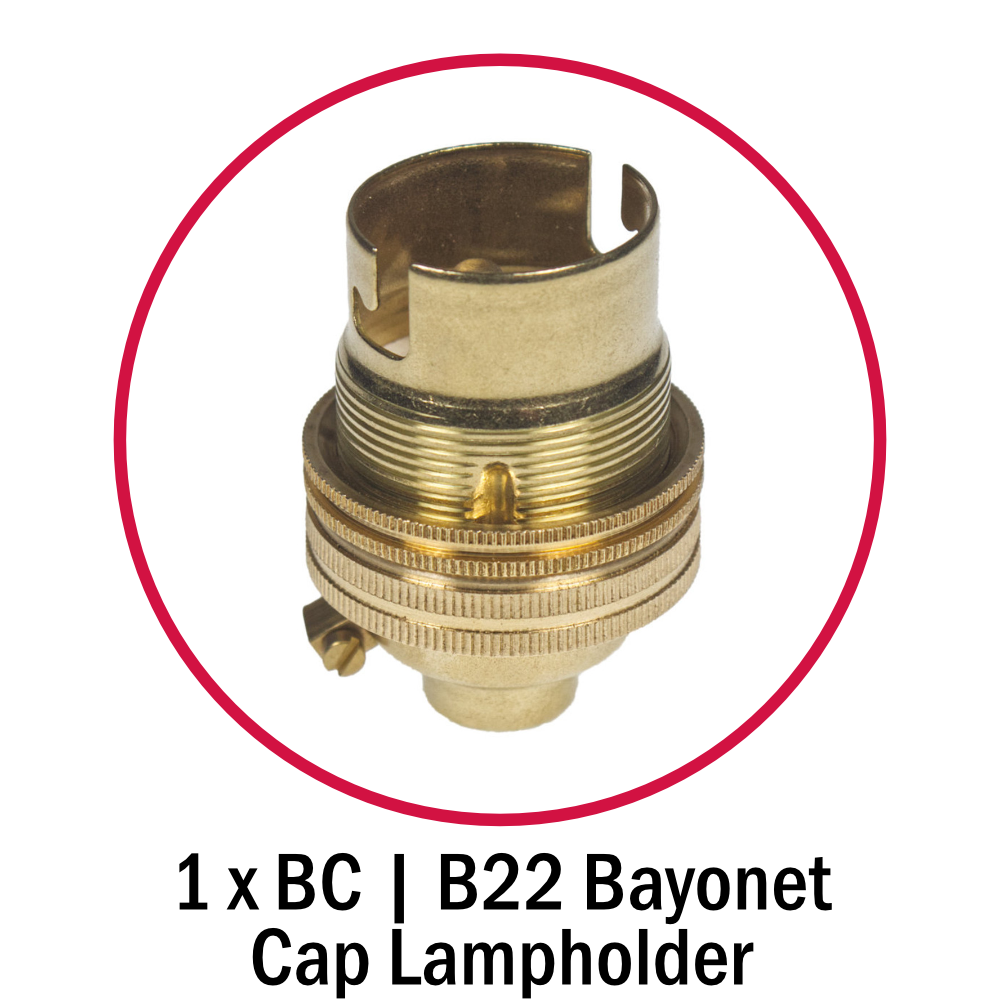

1x Lampholder
1x Side Entry Cord Grip
1x Bung
1x Bung Cover
1x Cable Set
1x Instructions

The cable provided is a 3 core 2.5m long set with plug and switch already installed on the cable, saving you the time and hassle of installing the switch and plug yourself.
The switch is located approx. 800mm from the unwired end (Where the lampholder goes) which is the standard for most table lamps, ensuring the switch will sit on the table rather than behind the table.

You can simply cut this length down if required.
Please Note: You cannot gain access into the plug top or the switch on this cable.

• Lampholder: BC | B22 | Bayonet Cap
• Max Wattage: 60w (Lamp Not Included)
• Cable Length Total: 2.5m
• Cable Length from un wired end to switch: 800mm
• Cable Outer Diameter: 7mm approx.
• Cable CSA: 0.75mm
• Switch: Single Pole
• Shade Facility: Yes (Shade not included)

PLEASE NOTE: If selecting the gold cable colour option - the gold cable now has a white plug instead of the gold one shown in the images. This is due to a temporary change in supplier, see below for the new gold 3 core cable with a white plug.
