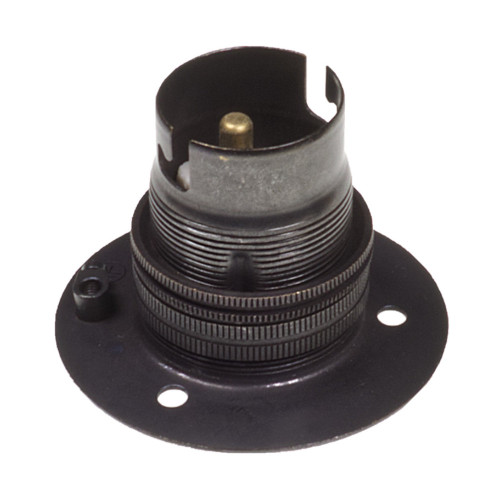

BC | B22 | Bayonet Cap Bronze Batten Lampholder with 52mm Base
This BC | B22 | Bayonet Cap Bronze Batten Lampholder with 52mm Base is the perfect solution for building your very own Hollywood style vanity inspired mirror unit, this batten lampholder can be attached directly to a base and is also a fabulous lampholder for creating lighting around the front of stages.
Comes in 4 parts comprising of the cap which is the section that has the batten base that will attach to your base, also on the base there will be an Earth block to Earth the lampholder. Then the centre connection unit where you will connect the live (Brown) and neutral (Blue), then the top section which will screw over the connection unit and onto the cap.
The manufacturer of the BC | B22 | Bayonet Cap Bronze Batten Lampholder with 52mm Base is S. Lilley & Son Limited which is a family business, based in Birmingham and is one of the UKs leading manufacturers of specialised lighting components. They were founded in 1840, so we know we are in good hands and the quality of their products really speak for themselves. All of their components are BS EN ISO 9001 registered, and the company is LIA (Lighting Industry Association) approved.
Due to this lampholder being metal it will require a 3 Core cable to Earth the lampholder.
Spec:
This BC | B22 | Bayonet Cap Bronze Batten Lampholder with 52mm Base is the perfect solution for building your very own Hollywood style vanity inspired mirror unit, this batten lampholder can be attached directly to a base and is also a fabulous lampholder for creating lighting around the front of stages.
Comes in 4 parts comprising of the cap which is the section that has the batten base that will attach to your base, also on the base there will be an Earth block to Earth the lampholder. Then the centre connection unit where you will connect the live (Brown) and neutral (Blue), then the top section which will screw over the connection unit and onto the cap.
The manufacturer of the BC | B22 | Bayonet Cap Bronze Batten Lampholder with 52mm Base is S. Lilley & Son Limited which is a family business, based in Birmingham and is one of the UKs leading manufacturers of specialised lighting components. They were founded in 1840, so we know we are in good hands and the quality of their products really speak for themselves. All of their components are BS EN ISO 9001 registered, and the company is LIA (Lighting Industry Association) approved.
Due to this lampholder being metal it will require a 3 Core cable to Earth the lampholder.
Spec:
- Height: 37mm
- Lampholder Diameter: 26mm
- Base Diameter: 52mm
- Lamp Style: BC | B22 | Bayonet Cap
- Material: Brass
- Finish: Bronze
Additional Information: If you need extra information
regarding this product, such as; disassembling the lampholder, alignment
and wiring - scroll through the additional product images and/or visit the 'Help Centre' on our website.
- Colour:
- Bronze
- Switched:
- No
- Base:
- Batten
