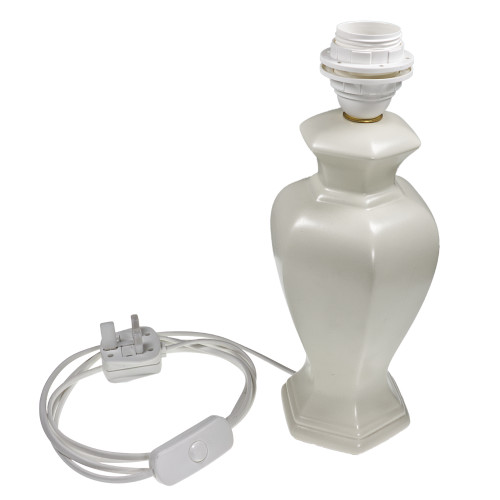

Ceramic Base Lamp Kit17 5119161
This kit is made for creating your own one-of-a-kind custom lamp, helping convert a beautiful ceramic item that you already own into a stunning original lamp.
To be used with a ceramic base that has a small hole in the side and a larger hole in the base.
Kit Includes:

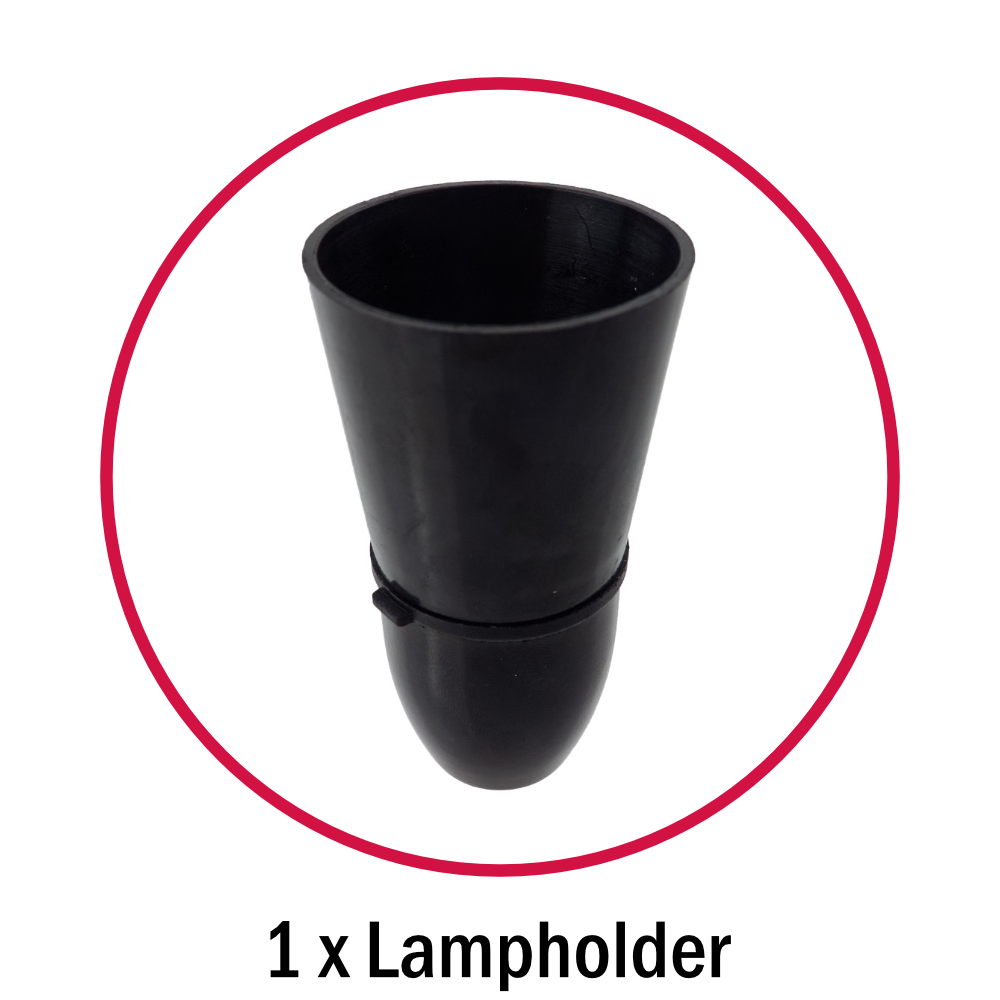

- 1 x Lampholder

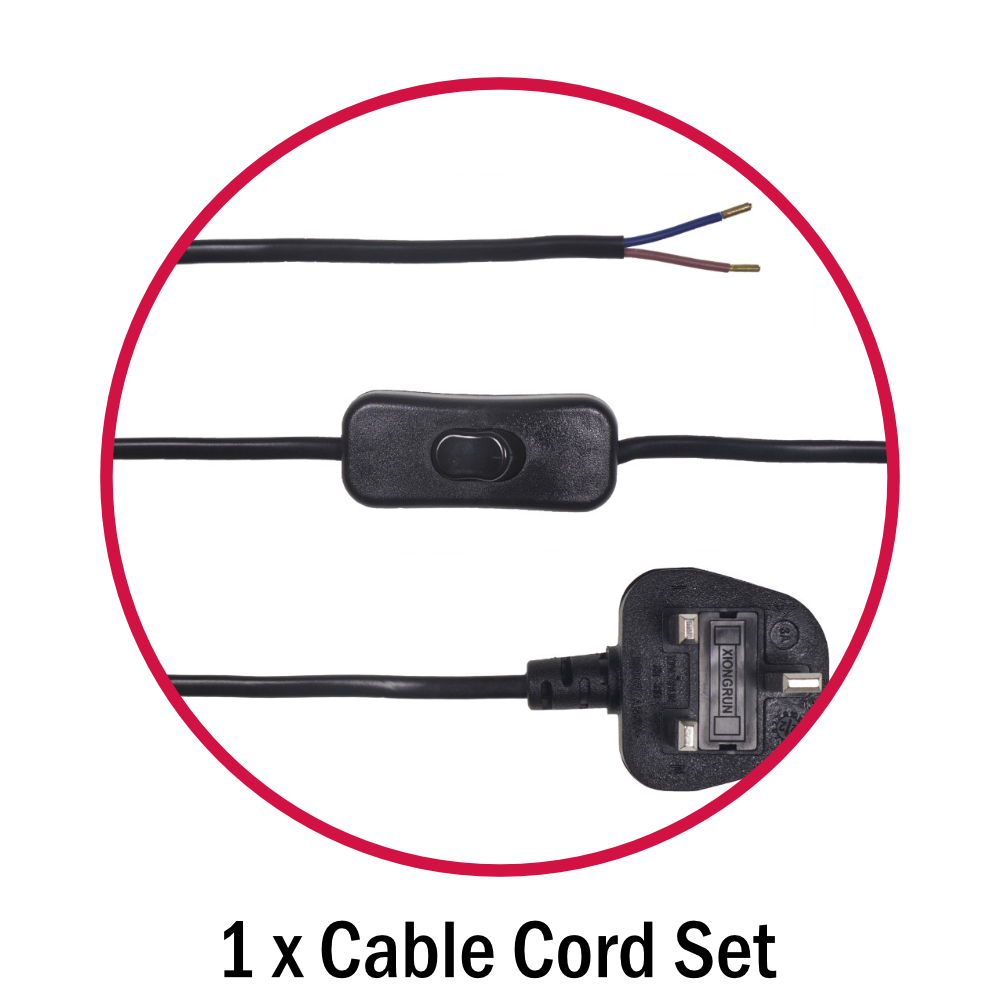

- 1 x 2.5m 2Core Cable Cord Set

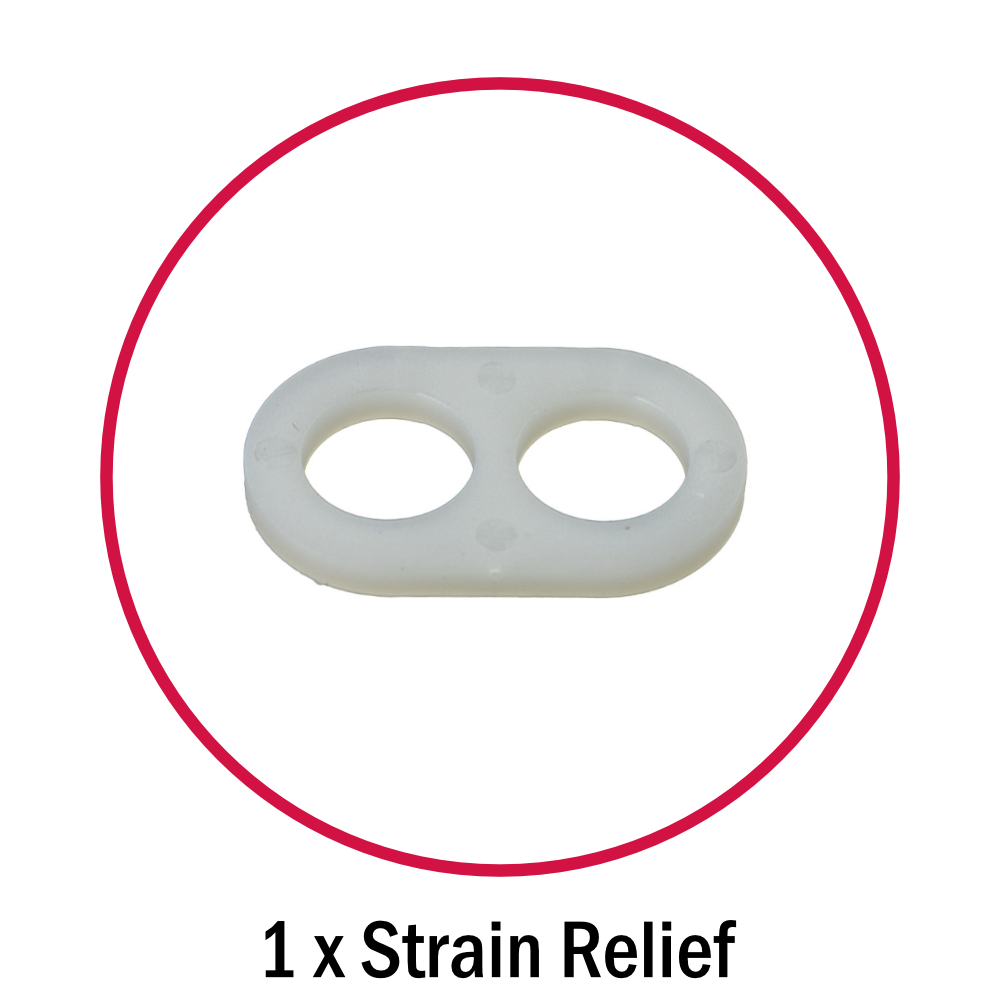

- 1 x Strain Relief

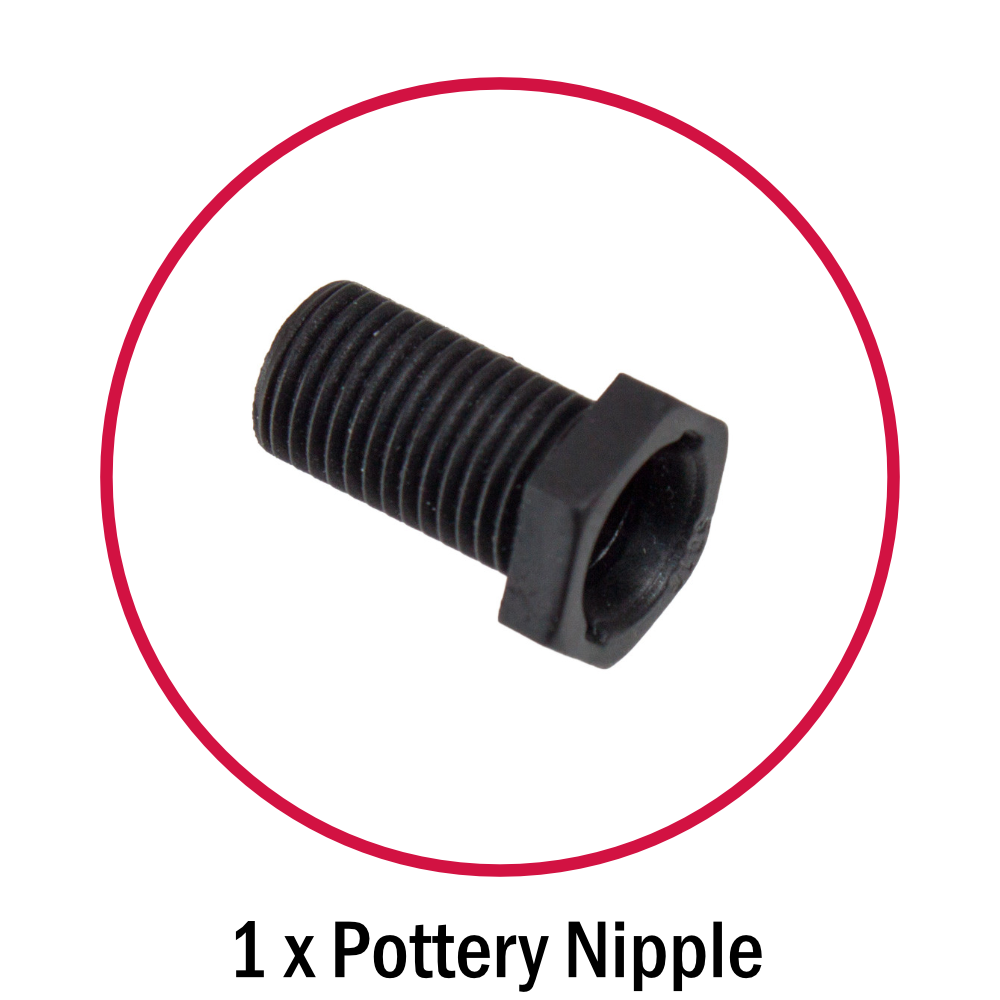

- 1 x Plastic Pottery Nipple (Diam. 10mm)

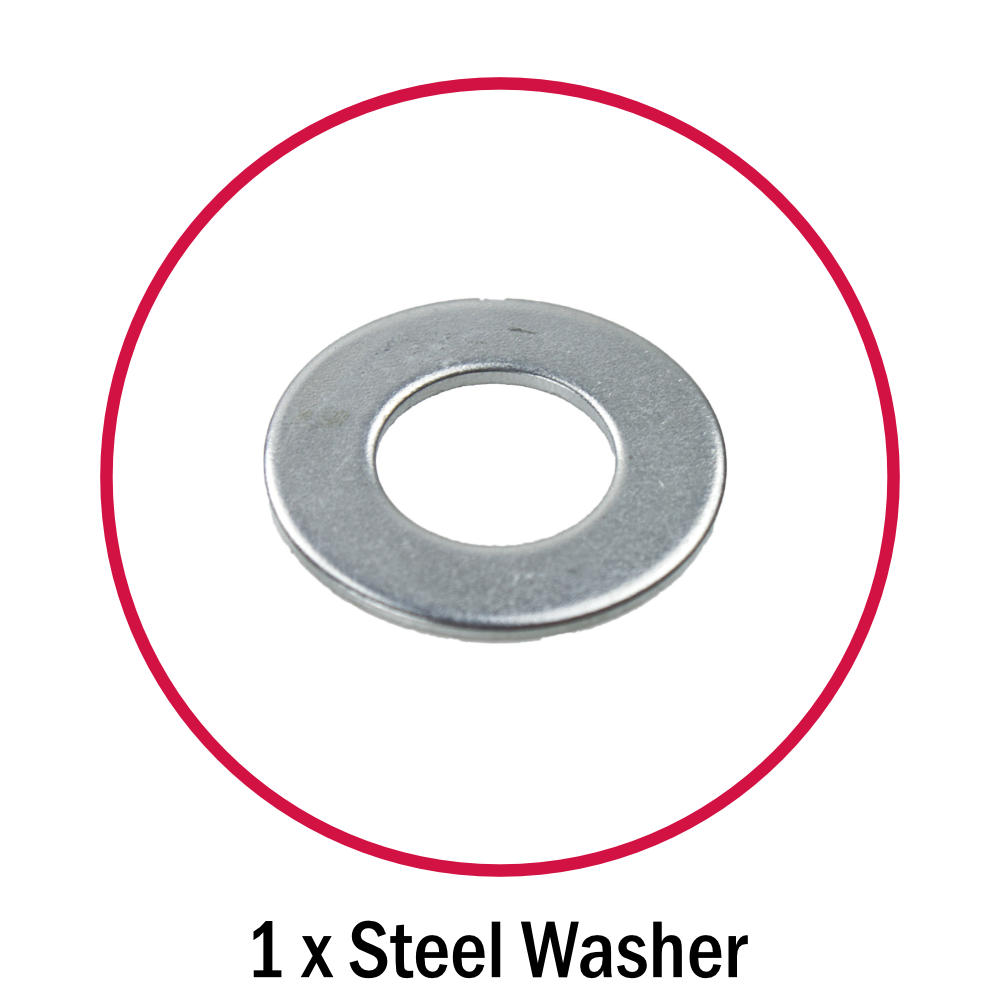

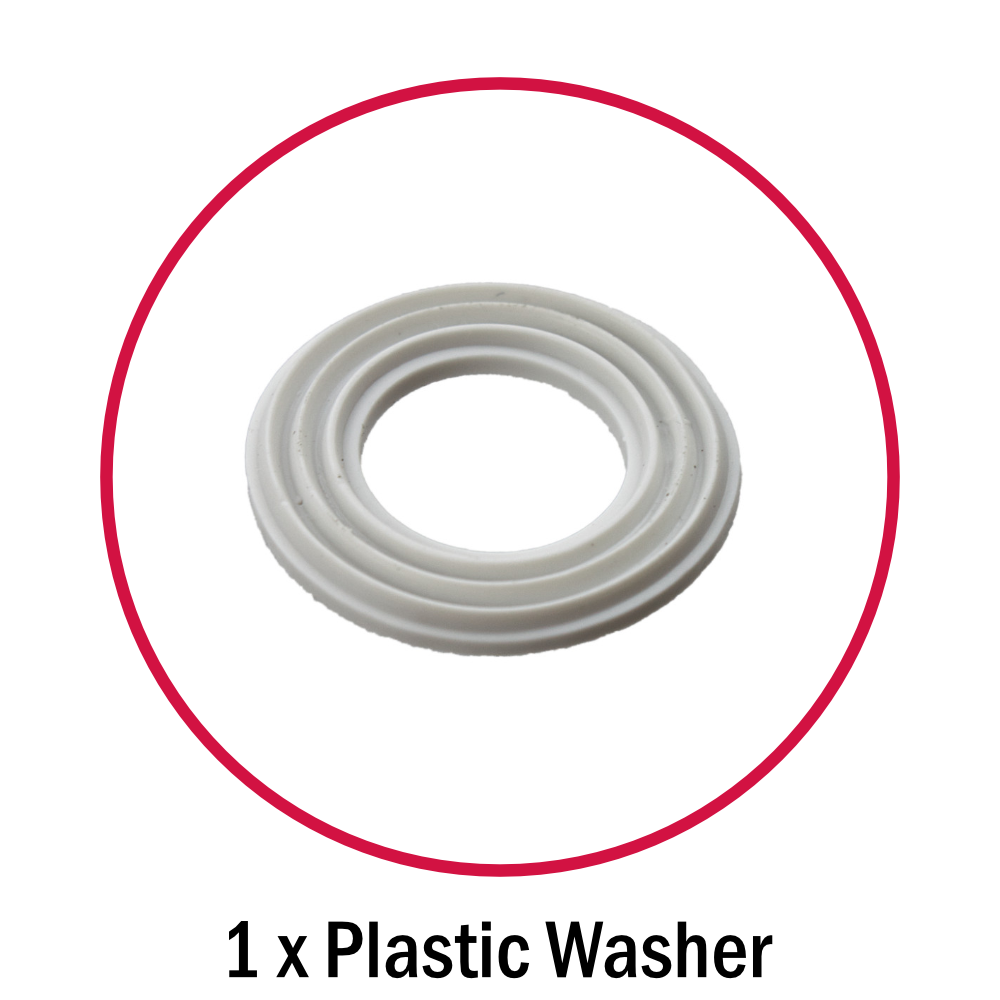

- 1 x Plastic Washer (Diam. 23mm)

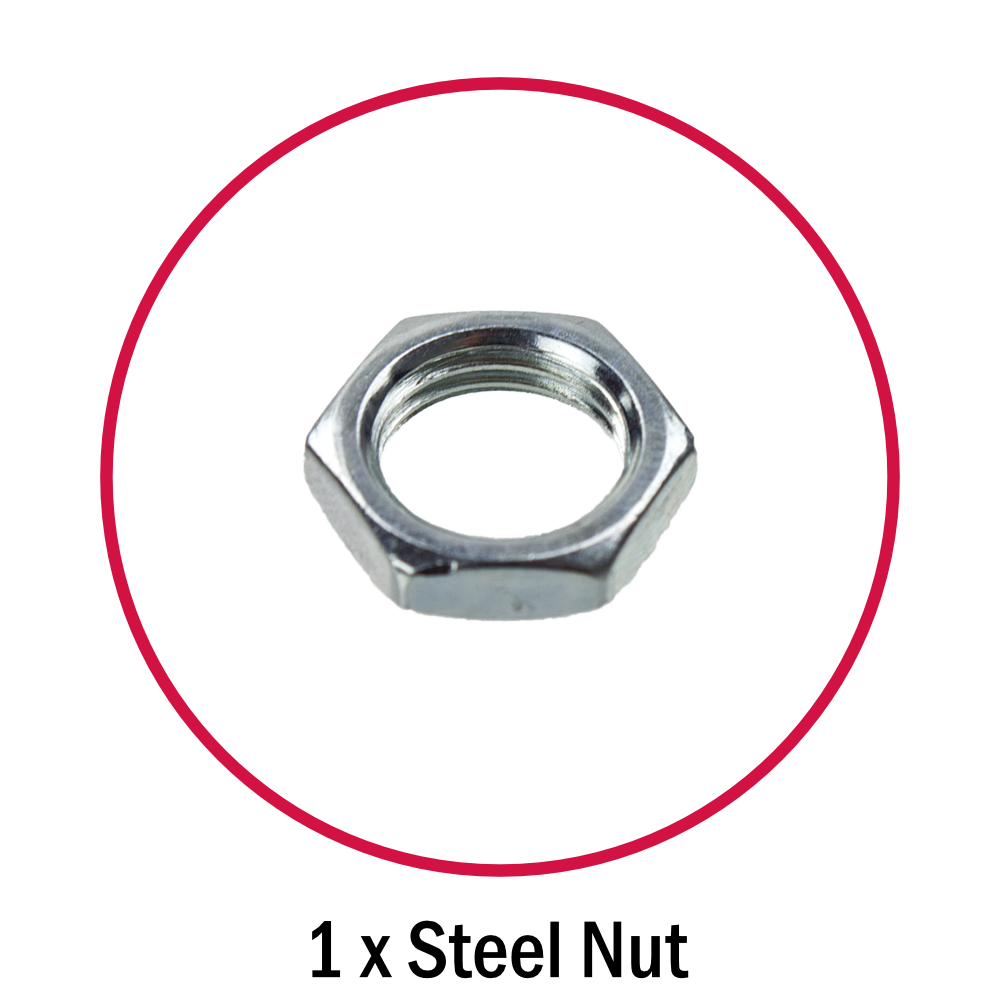

- 1 x 10mm Steel Nut

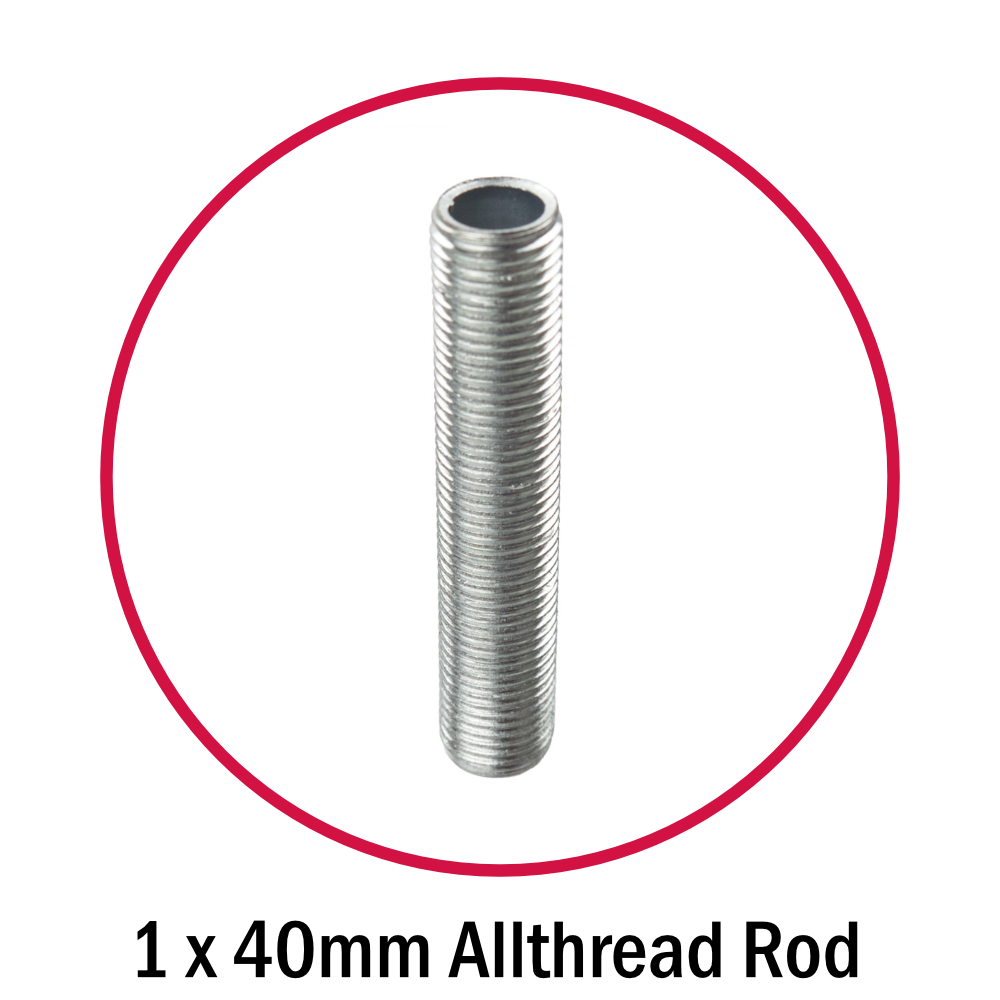

- 1 x 40mm Allthread

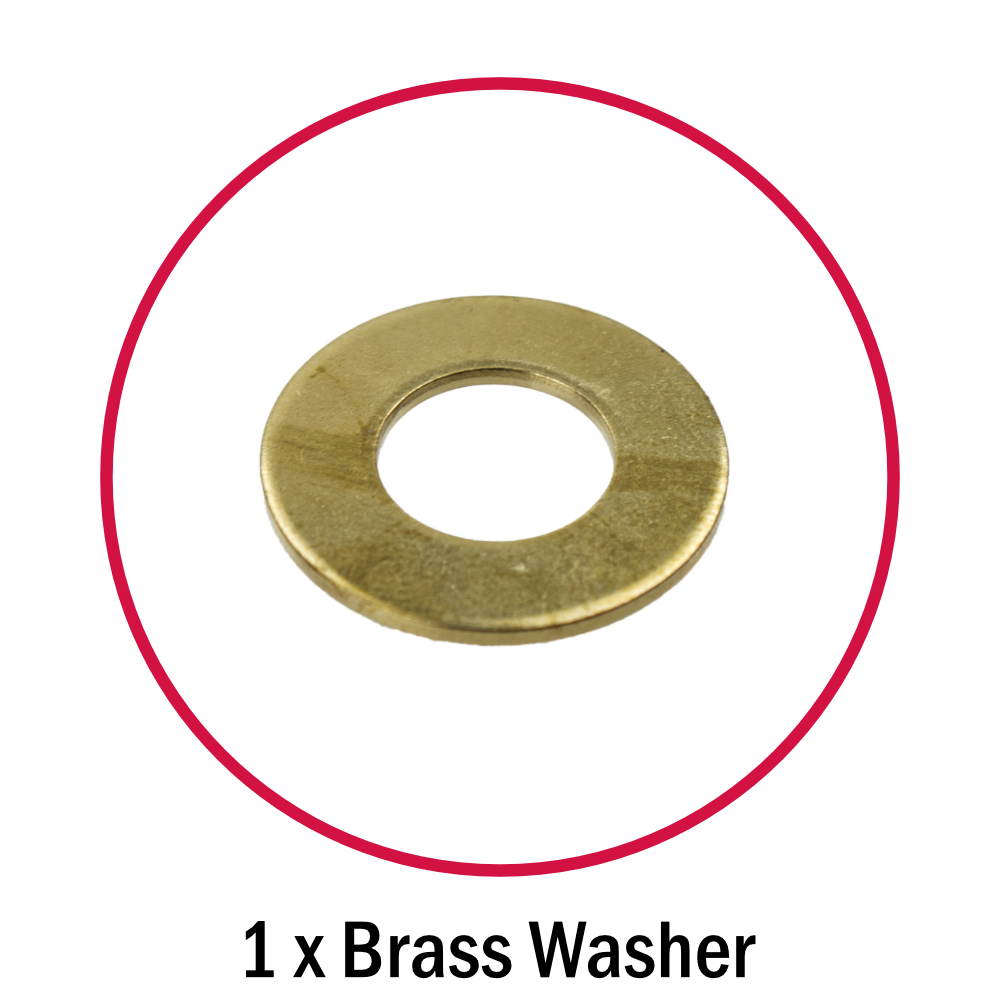

- 1 x 25mm Brass Washer (Diam. 25mm)

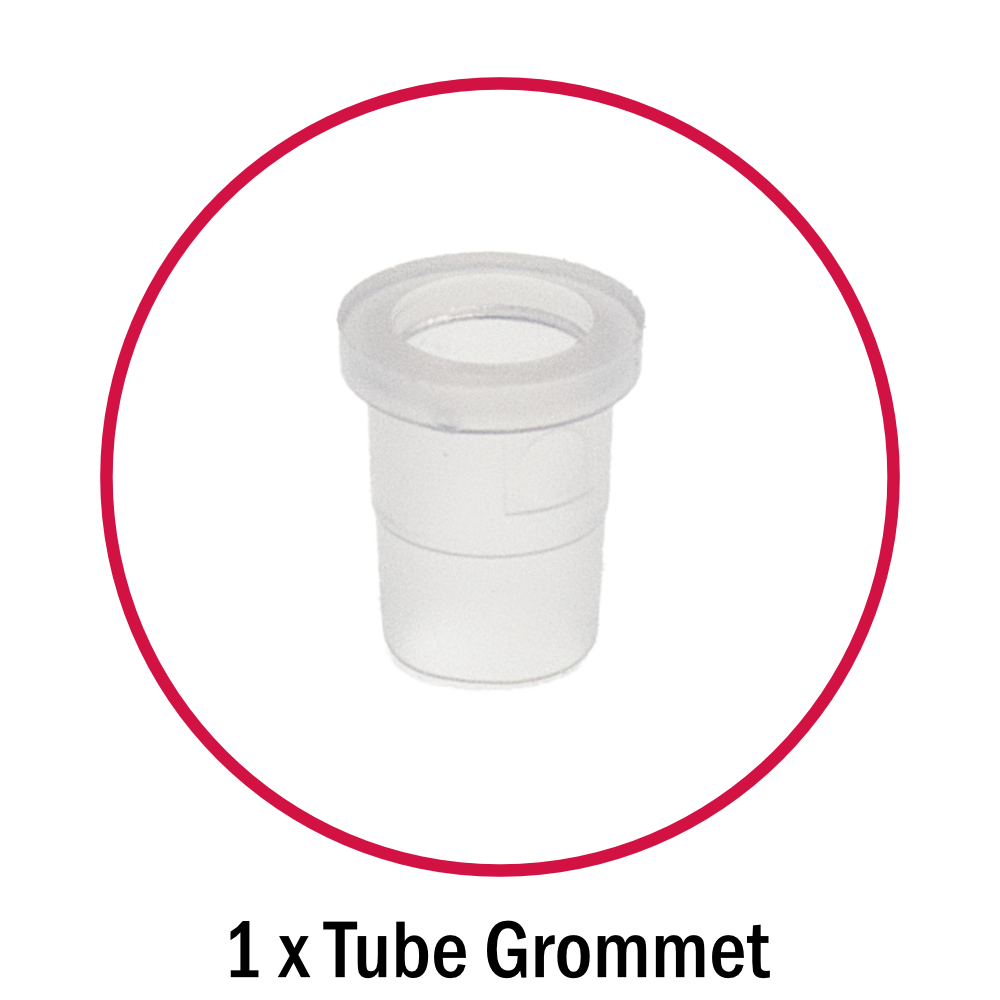

- 1 x Tube Grommet
Simply select between the option to have either an ES | E27 or a BC | B22 lampholder, as well as which colour (lampholder & cable) you would prefer.
Note: Ceramic base not included.
This kit uses a pottery nipple that will need to be inserted from inside then the lampholder will screw on top.
If you need help / guidance in installing this kit then visit our help centre and search for "Kit 17" or click on the following link for a step-by-step guide on how to install this kit: 'Kit 17 Instructions'
Important note for the Gold Lampholder - The Gold BC lampholder has "push Wire" terminals and not screw terminals. Also, it has a snap together body so once installed its not intended to be removed.
Spec:
ES | E27 | Edison Screw Lampholder Option
- Height: 54mm
- Diameter: 40mm
- Shade Hole Diameter Between: 40-53mm
- Material: Thermoplastic Resin
BC | B22 | Bayonet Cap Lampholder Option
- Height: 79mm
- Diameter Bottom: 24mm
- Diameter Top: 43mm
- Shade Hole Diameter Between: 27-30mm
- Material: Thermoplastic Resin
Cable Spec:
- Cable Length: 2.5meters
- Cable Cores: 2 Core
- Cable CSA: 0.75mm
- Distance From Switch to Unwired End: 750mm approx.
