Unswitched BC | Bayonet Cap Wooden Base Kit18
A Lamp Kit to turn a Wooden base into a Light with a Unswitched BC | Bayonet cap Lampholder and a pre made cable.
This kit is designed to be screwed onto a wooden base with a min diameter of 30mm and has the option to space the lampholder away from the wooden lamp if required.
Included in this Kit:
Comes with full instructions.
Please Note: Wooden base is not included in the kit.
If you need help / guidance in installing this kit then visit our help centre and search for "Kit 18" or click on the following link for a step-by-step guide on how to install this kit: 'Kit 18 Installation Guide'
Spec:
Lampholder
PLEASE NOTE: If selecting the gold cable colour option - the gold cable now has a white plug instead of the gold one shown in the images. This is due to a temporary change in supplier, see below for the new gold 3 core cable with a white plug.
A Lamp Kit to turn a Wooden base into a Light with a Unswitched BC | Bayonet cap Lampholder and a pre made cable.
This kit is designed to be screwed onto a wooden base with a min diameter of 30mm and has the option to space the lampholder away from the wooden lamp if required.
Included in this Kit:

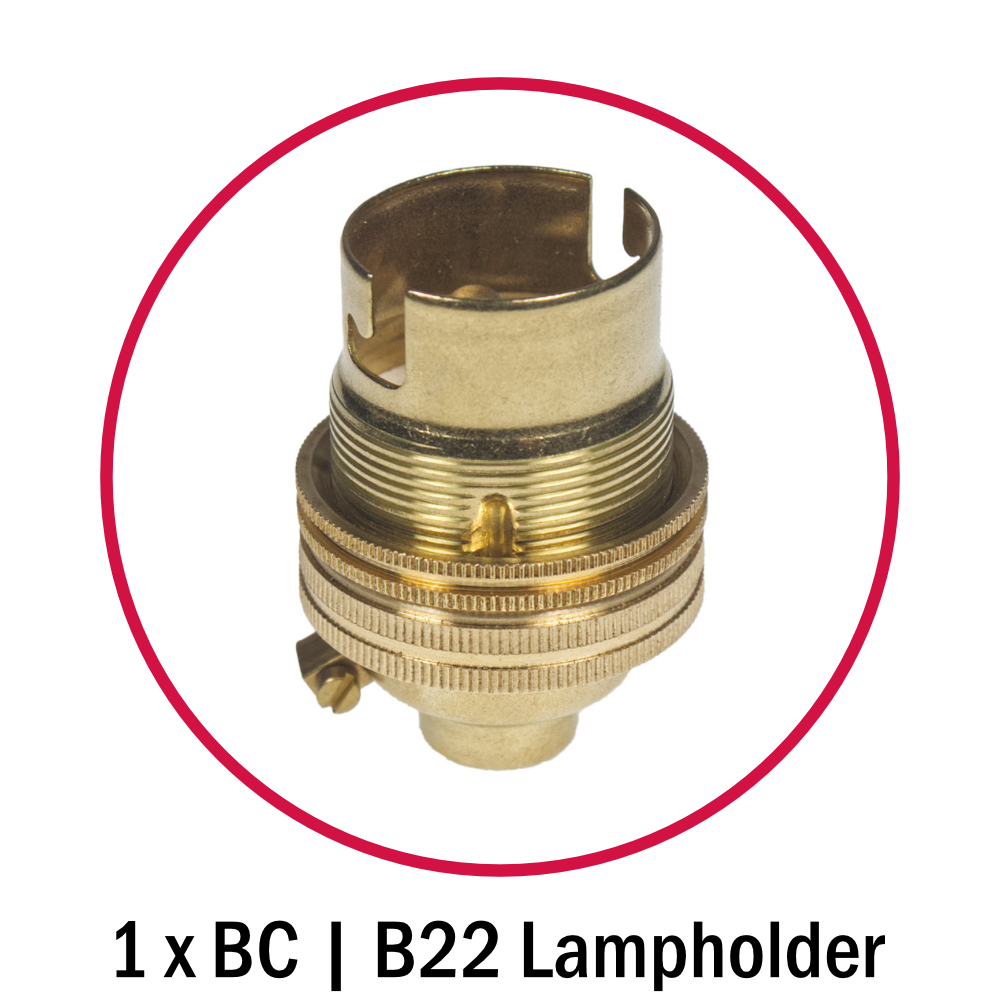

- 1 x Unswitched BC | B22 | Bayonet Cap Lampholder

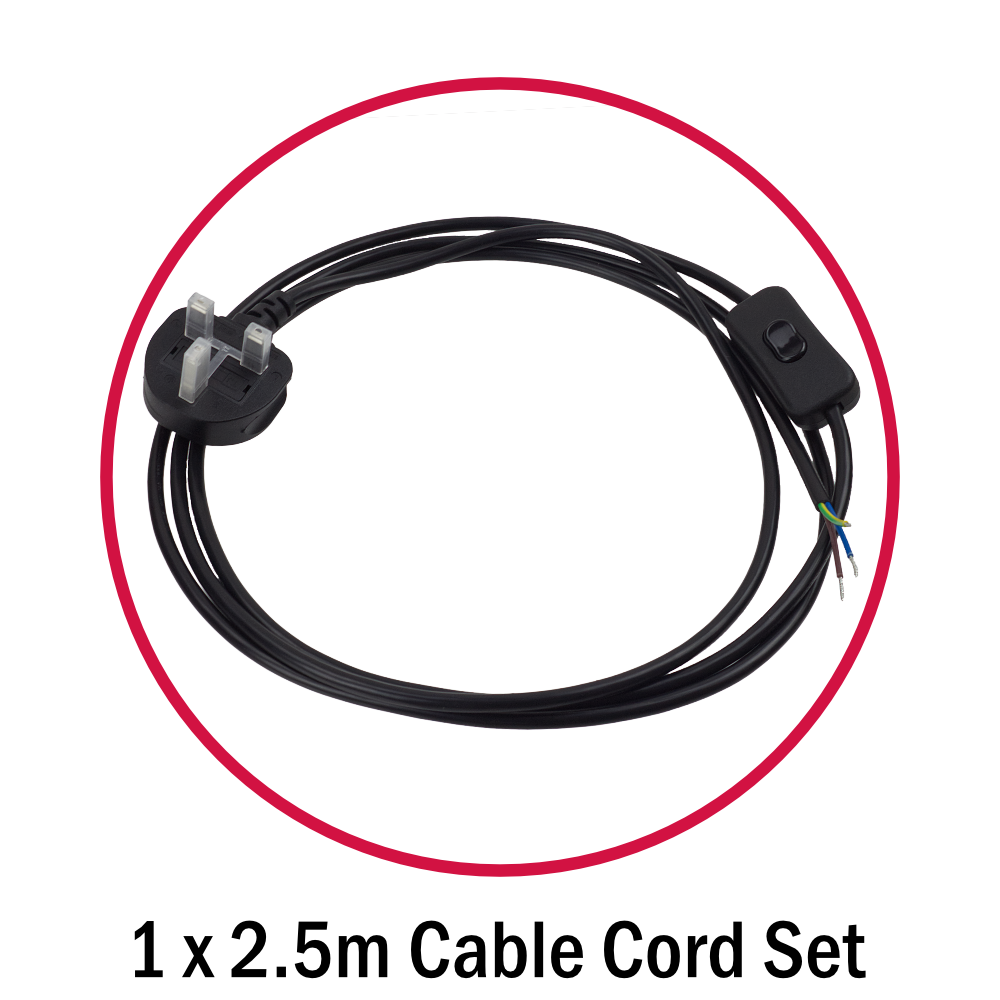

- 1 x 2.5m Cable with Switch
- 1 x Backplate
- 5 x Screws
- 1 x Nut Cover
- 1 x Flex Cord Grip
- 1 x Extender (Optional)
Comes with full instructions.
Please Note: Wooden base is not included in the kit.
If you need help / guidance in installing this kit then visit our help centre and search for "Kit 18" or click on the following link for a step-by-step guide on how to install this kit: 'Kit 18 Installation Guide'
Spec:
Lampholder
- Lamp Cap: BC | B22 | Bayonet Cap
- Height: 48.5mm
- Diameter: 32mm
- Thread: 10mm
- Accepts a Shade: Yes
- Min Shade Hole Size: 26mm
- Max Shade Hole Size: 32mm
- Max Wattage: 60W
- Material: Brass
- Cable Size: 3 x 0.75mm
- Cable Length: 2.5m
Fixings
- Fixing Disc Diameter: 25mm
- Nut Cover Diameter: 27mm
- Nut Cover Height: 5mm
- Extender Diameter: 13mm
- Extender Internal Diameter: 7mm
PLEASE NOTE: If selecting the gold cable colour option - the gold cable now has a white plug instead of the gold one shown in the images. This is due to a temporary change in supplier, see below for the new gold 3 core cable with a white plug.
